What is git?

Last week, we learned about what a commit is and then we took a break from how git works, to talk more about how developers communicate about code.

We will go in and out of topics at times, in order to provides what is called spaced repetition, repeating material or key concepts with breaks in between.

Using git correctly is a really important goal of this course because git is an opportunity for you to demonstrate a wide range of both practical and conceptual understanding.

So, I have elected to interleave other topics with git to give core git ideas some time to simmer and give you time to practice them before we build on them with more depth at git.

Also, we are both learning git and using git as a motivating example of other key important topics.

Why so much git?¶

Today, we are going to learn what git is and later we will learn more details of how it is implemented.

Remember we are spending so much time with git for two reasons:

1. it is an important developer tool

2. it demonstrates important concepts that occur in other areas of CS

python3

git definition¶

From the git book, we have the full definition of git

git is fundamentally a content-addressable filesystem with a VCS user interface written on top of it.

We do not start from that point, because these documents were written for target audience of working developers who:

• are familar with other, old version control systems and learning an additional one

• are familiar with the detials of how file systems work

Let’s break down the definition

Git is a File system¶

Content-addressable filesystem means a key-value data store.

some examples of key-value pairs that you have seen in computer science broadly, and in this course specficially

• python dictionaries (see below)

• pointers (address,content)

• parameter, passed values

• yaml files (e.g. the github action files, like getassignment.yml)

here is an exmple using a small dictionary

my_dict = {'a':5, 'b':7}

then we can access the items by the key

my_dict['a']

this gives a more semantic way of accesing items than a regular list or array

Git is a Version Control System¶

Without a version control system

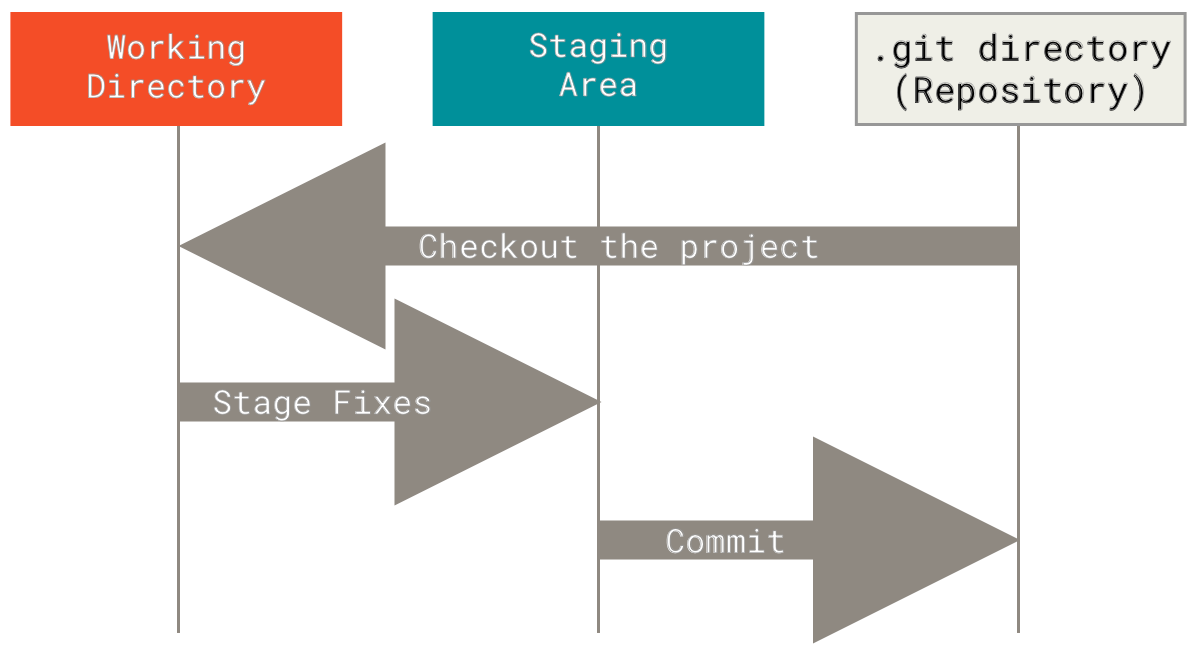

git stores snapshots of your work.

it uses 3 stages:

These three stages are the in relation to your working directory, and potentially remotes.

So in broader context, the git visual cheatsheet is a more complete picture and has commands overlayed with the concept.

Git has two sets of commands¶

• Porcelain: the user friendly VCS

• Plumbing: the internal workings- a toolkit for a VCS

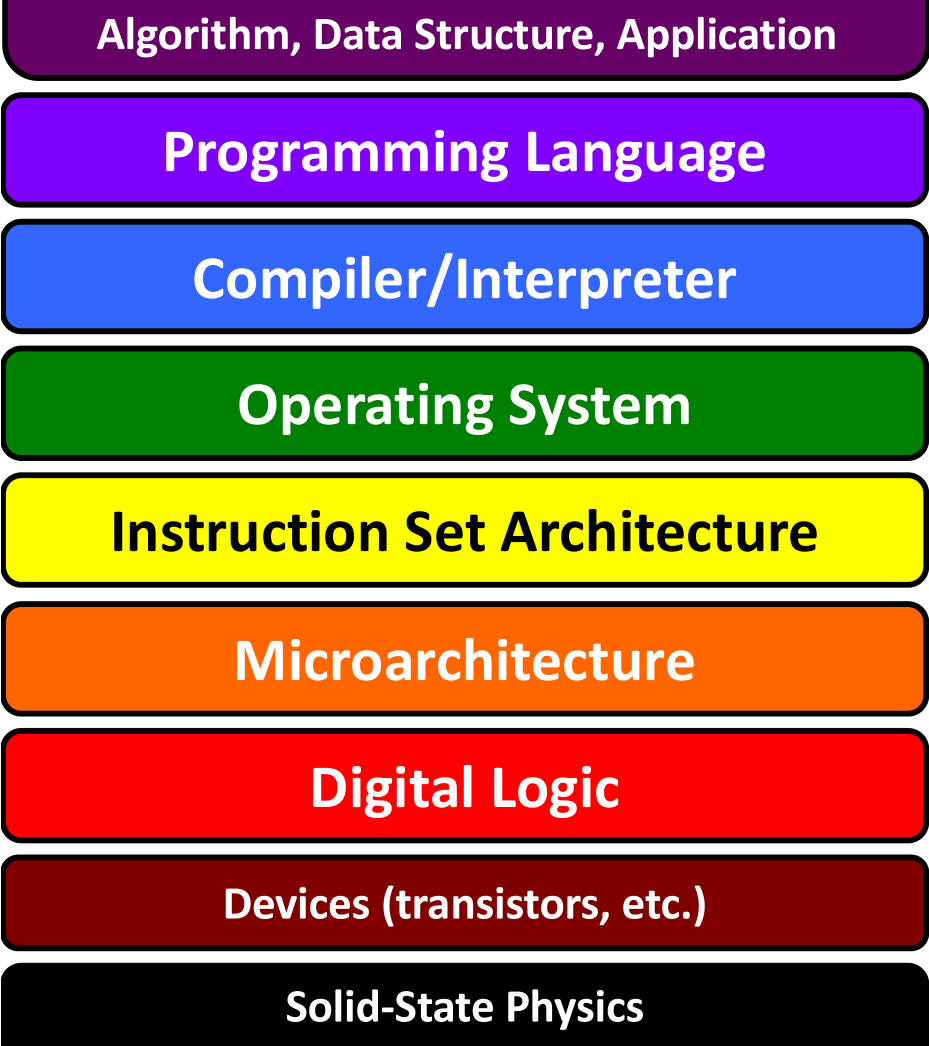

a lot of programming is designing abstractions, to get good at making something, you study examples first- good and bad- to learn what to do, and not to do.

leaky abstractions

• the above is a blog post by one of the co-founders and the 2010-2019 CEO of Stack Overflow Joel Spolsky

We have so far used git as a version control system, using the porcelain commands. A version control system, in general, will have operations like commit, push, pull, clone. These may work differently under the hood or be called different things, but those are what something needs to have in order to keep track of different versions.

The plumbing commands reveal the way that git performs version control operations. This means, they implement the git file system operations for the git version control system.

One way to think of the plumbing vs porcelain commands kind of like public vs private methods. A user should typically only need the public methods (porcelain commands) but those use the private ones to get things done (plumbing commands). We will use the plumbing commands over the next few classes to examine what git really does when we call the porcelain commands that we will typically use.

Git is distributed¶

What does that mean?

Git runs locally. It can run in many places, and has commands to help sync across remotes, but git does not require one copy of the repository to be the “official” copy and the others to be subordinate. git just sees repositories.

For human reasons, we like to have one “official” copy and treat the others as local copies, but that is a social choice, not a technological requirement of git. Even though we will typically use it with an offical copy and other copies, having a tool tht does not care, makes the tool more flexible and allows us to create workflows, or networks of copies that have any relationship we want.

It’s about the workflows, or the ways we socially use the tool.

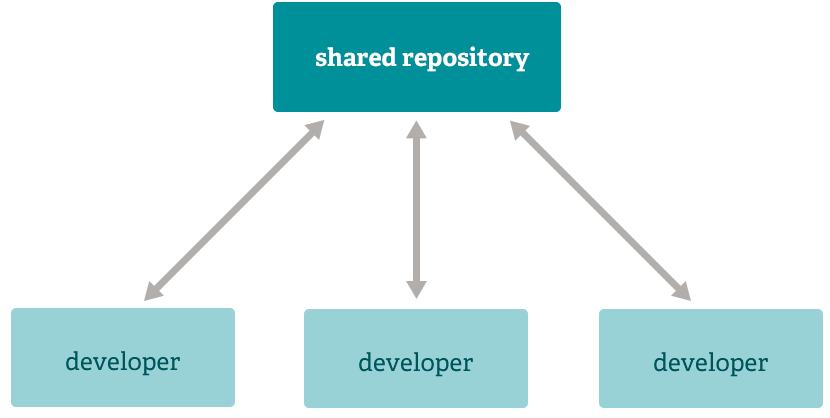

Subversion Workflow¶

subversion is an older VCS

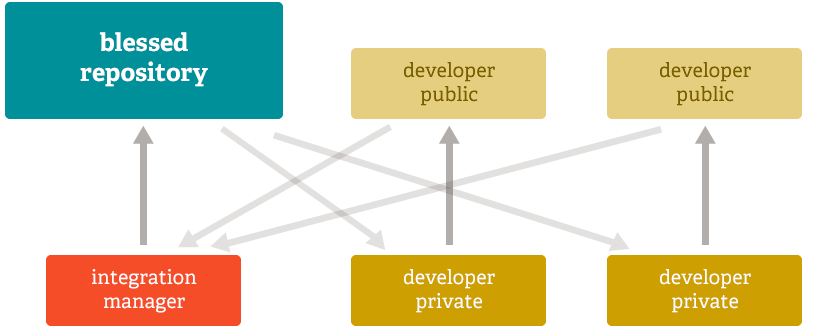

Integration Manager¶

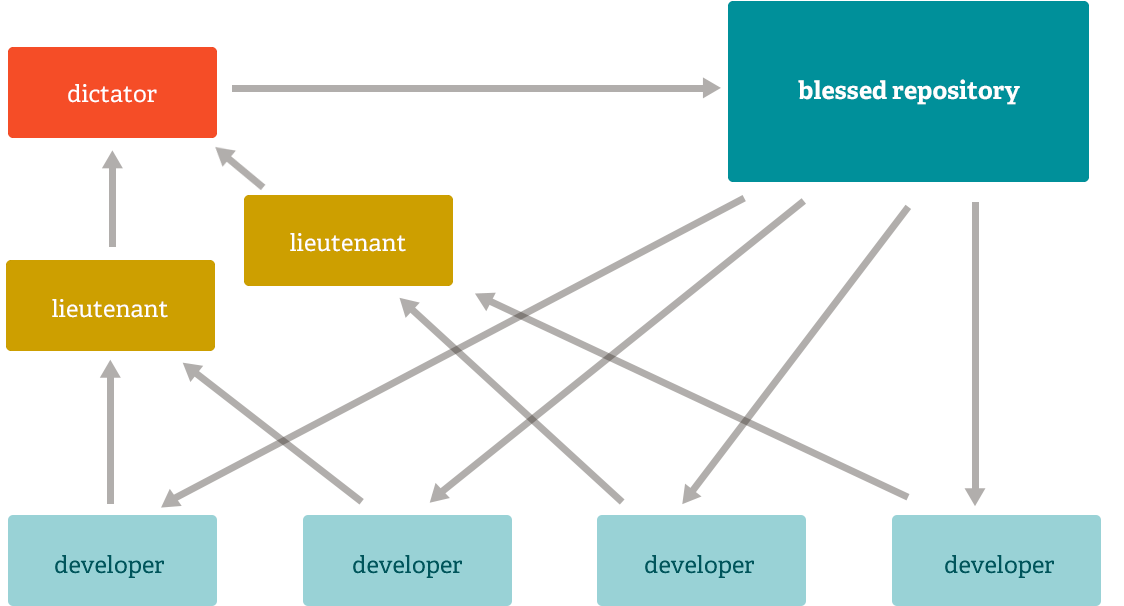

dictator and lieutenants¶

How does git do all these things?¶

Let’s look at git again in our github-inclass repo

cd ../gh-inclass-fa25-brownsarahm/

ls .git/

COMMIT_EDITMSG	hooks		ORIG_HEAD
config		index		packed-refs
description	info		REBASE_HEAD
FETCH_HEAD	logs		refs
HEAD		objects

We can use the bash command find to search the file system note that this does not search the contents of the files, just the names.

find .git/objects/ -type f

.git/objects/6f/435051d686c4fec112cdfe7c73c65ad9153125
.git/objects/9e/ce5efa25710c8fad7d9f210928785b5362b06f
.git/objects/3c/7ace1d193b78129c10d61609cbe97b2686f202
.git/objects/0b/27ed97affe4f84fa39a869a971393158df9614
.git/objects/93/c08483f44ebdf5ce10e6c0002e641aa0cc8844
.git/objects/33/00996de3e91ced5c731d759d29a10f011aeb00
.git/objects/9d/6ffa6ded47d8b6df13ed60e482b188015ee499
.git/objects/a4/df42ba0c80164337e9b643cedf81bdf0bfed06
.git/objects/da/16bedd26719bebbd410be1ce7e798db3906ca1
.git/objects/d6/36b59de6f684efb5ac59e735ddf8b598e0a1a1
.git/objects/bc/89cfcd3f35fd1052b707a43e65aa06e9dc087f
.git/objects/d8/7bf4a5641e0429fd3c371bd2b19d755105ca92
.git/objects/ab/e403c82238c3877b3437c1ab3e32499a60e24f
.git/objects/c1/b4f81358eaaf467ff4ce4b95171497c28d1622
.git/objects/18/28598c676242bd80f230aa122226d34030d385
.git/objects/pack/pack-13d4c9a19caacca644b065177eba0c4ebc229de9.idx
.git/objects/pack/pack-13d4c9a19caacca644b065177eba0c4ebc229de9.pack
.git/objects/pack/pack-13d4c9a19caacca644b065177eba0c4ebc229de9.rev
.git/objects/11/017a59088d4a0b880f770f15fab8c9e086a789
.git/objects/1f/6ef3acccb91bc0c33661854903ec5e7d666fb5
.git/objects/74/3db376fa76bb3611cfac6935938d179330c7eb
.git/objects/28/5dd2104498d173d1926fb59f5513d224a34a14
.git/objects/19/e9a4e91197294600869263508df42d46328d5c
.git/objects/19/9eea35c4ed2842d2685d9ba4c1e1fb48c6c9cb
.git/objects/21/6b5d4d8a7630626ce0e7997aa89678d340d680
.git/objects/3a/4533a3abbc749f5e1905b30eb187a7350ae71a
.git/objects/37/d36fa247c105aa79db73462d339328282d7dbd
.git/objects/39/d5708913a6c708d1a505cde6da544785c086a6
.git/objects/99/f86bf7112debc934e7fa4504232a48266d90e4
.git/objects/63/063aaa7d1dad782e0349d897fcf33ff16a7e5d
.git/objects/63/4c2175bf0b39883b5e8dcc1fae0d2b45c770b3
.git/objects/d3/980efccf4856f0c61a6a16ed40be534c5230a5
.git/objects/b6/8b274889484df662f75334a49aff24d74329b9
.git/objects/b6/900699673b2613e2456a50b3b26e297dafb02c
.git/objects/b0/20e21272ba05cff974b1f789bdf5cfd2f5d355
.git/objects/c4/29050b554c3d504dc964b32f59affcf28f6435
.git/objects/cc/627365016fb88ed37beaea453e699ddc54d301
.git/objects/f9/e70e5b8173525188a6b10ce5979972de4e0d9f
.git/objects/e8/99a0e7ad5a9626a6d5c6b0fd96a410bd42b710
.git/objects/ce/fef180a1dee7ac5511a40875ce36aae3e22aff
.git/objects/e0/f340c90f46a0103ee3dac9cfdc5520e4848731
.git/objects/2d/232a2231c650dc4094606797fe0bd3e0ce4c65
.git/objects/48/70a077addb5bf3da72fdbd4180d5484dde4e75
.git/objects/1e/97f0d64fc62f40bbeb0eba19fa696fe47b7ccc
.git/objects/4f/8c7533ddc99e6a12a26fe1802d40e8e3c78f4b
.git/objects/76/2f01b5cf84f39096d55ca95e46f0519d8cae48
.git/objects/82/893b5a04aee05782394678373add23a35e1887
.git/objects/49/d6982b5f411764b330c03be5faed0d60610ca3

This is a lot of files! It’s more than we have in our working directory.

This is a consequence of git taking snap shots and tracking both the actual contents of our working directory and our commit messages and other meta data about each commit.

Git Variables¶

the program git does not run continously the entire time you are using it for a project. It runs quick commands each time you tell it to, it’s goal is to manage files, so this makes sense. This also means that important information that git needs is also saved in files.

We can see the files that it has by listing the directory:

ls .git

COMMIT_EDITMSG	hooks		ORIG_HEAD
config		index		packed-refs
description	info		REBASE_HEAD
FETCH_HEAD	logs		refs
HEAD		objects

the files in all caps are like gits variables.

HEAD¶

Lets look at the one called HEAD we have interacted with HEAD before when resolving merge conflicts.

cat .git/HEAD

ref: refs/heads/organization

HEAD is a pointer to the currently checked out branch.

The other files with HEAD in their name are similarly pointers to other references, named corresponding to other things.

so, if we switch branches

git checkout main

Switched to branch 'main'
Your branch is up to date with 'origin/main'.

Then we look at HEAD again:

cat .git/HEAD

ref: refs/heads/main

now it points to main

Branches are like pointers¶

I have said this before and we hav used it conceptuall, but now we can see this as it implemented

above, we looked at the value of the HEAD file.

ref: refs/heads/main

It tells us that the HEAD is currently a ref, which branches are one type of. Specifically branches are stored in the refs/heads folder.

Now we can look at what is in that file

cat .git/refs/heads/main

that file contains the hash of the last commit on that branch:

11017a59088d4a0b880f770f15fab8c9e086a789

We can do the same for another branch:

cat refs/heads/organization

again, the hash of the last commit on that branch

e899a0e7ad5a9626a6d5c6b0fd96a410bd42b710

We can verify this with git log:

git log

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
commit e899a0e7ad5a9626a6d5c6b0fd96a410bd42b710 (HEAD -> organization, origin/organization)
Author: Sarah M Brown <brownsarahm@uri.edu>
Date:   Thu Sep 18 13:38:47 2025 -0400

    begin reorg

commit 285dd2104498d173d1926fb59f5513d224a34a14
Author: Sarah M Brown <brownsarahm@uri.edu>
Date:   Thu Sep 18 13:04:26 2025 -0400

    add note to readme

commit 3300996de3e91ced5c731d759d29a10f011aeb00 (origin/organizing_ac, organizing_ac)
Author: Sarah M Brown <brownsarahm@uri.edu>
Date:   Thu Sep 18 12:34:06 2025 -0400

    add files for organizing activity

commit 11017a59088d4a0b880f770f15fab8c9e086a789 (origin/main, origin/HEAD, mybranchcheckedoutb, my_branch, main)
Merge: c8f4926 99f86bf
Author: Sarah Brown <brownsarahm@uri.edu>
Date:   Tue Sep 16 19:51:36 2025 +0300

    Merge pull request #2 from compsys-progtools/1-add-a-readme

    create a readme closes #1

What happens when we checkout a branch?¶

First it sets the HEAD to point to that branch, then it traces to the commit that branch points to.

Recall, from a commit object we can see the contents:

git cat-file -p 1101

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
tree d636b59de6f684efb5ac59e735ddf8b598e0a1a1
parent c8f4926313ba8f6c5bfad3857b7479a666328e6d
parent 99f86bf7112debc934e7fa4504232a48266d90e4
author Sarah Brown <brownsarahm@uri.edu> 1758041496 +0300
committer GitHub <noreply@github.com> 1758041496 +0300
gpgsig -----BEGIN PGP SIGNATURE-----

 wsFcBAABCAAQBQJoyZWYCRC1aQ7uu5UhlAAAj5YQAJH2rVfKYEjz4P5H12xBnWhh
 k2W5GKBWHRnuzdmB6Tmm6yjkvRPWgjZ1qRgl4UIRRGWBa5sQcZVMscmAinxd3+q8
 L1jqQjjyuOy9FeCDEQ9yLrrF6rzYTdBRZvlNWTFyns1aZrj1JT8e+IpLSuMJhJc5
 dH44dhvTi6fE5gIyCgFlRK7CuuuKAuxn3/evtXSMAf25u1cWq8Htl18gGWHj7vWI
 aXqA8EAGrcGz5b2u+cDSdnUoUTQZHaSC2L4W4Kpe3WS9sohWpc8xEl+hPbSOmYgB
 TdSY1QhZL2MVap0sOJ0lI/f2fWz/4U0toapX6yX4ZifffqZIESMo8v2/ZYqemdaV
 ghw/elalahbUfnRUTJag5m3OxClq5VImZ/9T1zgOwLQq+nwQ90yudcxGji9dHb68
 TPSxLbbUlcGnA5VtBoPx+qG4PFtLjS1dhADQki1cmUZBn+fex5bR+iWlOlxjXfXP
 IDWXr0S4XIbn8uRrEimiN2XxpUap5ZOEsBTKEUM1Lckijrs3H3FfvJHW49drcCgO
 Vba8zRonImBU24EeTfdCvgYFz8Jfjow5lMyOmQZHtDNGJ1+OGqN7h+GKDazuXqoz
 Zs8Dy+zOOlKwbMnMvgUS/FU3kV17dxI76P46gvIJlazPJuGN2b5lAXTAECGY9tni
 xx+nH+Z0/HrBdNeFCi0C
 =9yM8
 -----END PGP SIGNATURE-----


Merge pull request #2 from compsys-progtools/1-add-a-readme

create a readme closes #1

From that commit, it picks out the tree object (see higlighted line in the above)

git cat-file  -p d636b

040000 tree 263fb9d22090e88edd2bf1847c24c3511de91b49	.github
100644 blob bc89cfcd3f35fd1052b707a43e65aa06e9dc087f	README.md

Then, for each blob it reads the content of that blob object and writes the content to a file names as is.

So in this exmaple, mine takes the content from blob bc89cf uncompresses it and writes it to README.me

And does the same process for each tree recursively until done.

Since the tree above is for the latest commit on the branch that is currently checked out, if I use ls to view the workign directory it will match:

ls -a

.		.git		.secret
..		.github		README.md

up to a few exceptions:

• ., and .. are special and everywhere, so they don’t count.

• the .git directory is not snapshotted, it holds the snapshots`

• on the organization branch we ignored the .secret file so it is still in the repo from that branch, because git does not modify it when we switch, though it is not protected on the main branch yet (there is no .gitignore file here) so we need to be careful

and if we look at the hash of the blob for the README file:

git cat-file -p bc89

# GitHub practice

test

and compare it to the current file contents

cat README.md

# GitHub practice

test

those also match

If we switch branches again, we can go through the steps again and see:

git checkout organization

Switched to branch 'organization'
Your branch is up to date with 'origin/organization'.

then check the HEAD:

cat .git/HEAD

ref: refs/heads/organization

and the branch file

cat .git/refs/heads/organization

e899a0e7ad5a9626a6d5c6b0fd96a410bd42b710

then that commit

git cat-file -p e899

tree 6f435051d686c4fec112cdfe7c73c65ad9153125
parent 285dd2104498d173d1926fb59f5513d224a34a14
author Sarah M Brown <brownsarahm@uri.edu> 1758217127 -0400
committer Sarah M Brown <brownsarahm@uri.edu> 1758217127 -0400

begin reorg

and the tree for that

git cat-file -p 6f43

040000 tree 263fb9d22090e88edd2bf1847c24c3511de91b49	.github
100644 blob c1b4f81358eaaf467ff4ce4b95171497c28d1622	.gitignore
100644 blob 3a4533a3abbc749f5e1905b30eb187a7350ae71a	API.md
100644 blob 9ece5efa25710c8fad7d9f210928785b5362b06f	CONTRIBUTING.md
100644 blob 2d232a2231c650dc4094606797fe0bd3e0ce4c65	LICENSE.md
100644 blob 19e9a4e91197294600869263508df42d46328d5c	README.md
100644 blob 9d6ffa6ded47d8b6df13ed60e482b188015ee499	abstract_base_class.py
100644 blob 762f01b5cf84f39096d55ca95e46f0519d8cae48	alternative_classes.py
040000 tree 743db376fa76bb3611cfac6935938d179330c7eb	docs
100644 blob 93c08483f44ebdf5ce10e6c0002e641aa0cc8844	example.md
100644 blob f9e70e5b8173525188a6b10ce5979972de4e0d9f	helper_functions.py
100644 blob 762f01b5cf84f39096d55ca95e46f0519d8cae48	important_classes.py
100644 blob d87bf4a5641e0429fd3c371bd2b19d755105ca92	scratch.ipynb
100644 blob 39d5708913a6c708d1a505cde6da544785c086a6	setup.py
040000 tree d3980efccf4856f0c61a6a16ed40be534c5230a5	tests

and if we for example, pick the README again

git cat-file -p 19e9

# GitHub practice

test
today is rainy
|file | contents |
> | --| -- |
> | abstract_base_class.py | core abstract classes for the project |
> | helper_functions.py | utitly funtions that are called by many classes |
> | important_classes.py | classes that inherit from the abc |
> | alternative_classes.py | classes that inherit from the abc |
> | LICENSE.md | the info on how the code can be reused|
> | CONTRIBUTING.md | instructions for how people can contribute to the project|
> | setup.py | file with function with instructions for pip |
> | test_abc.py | tests for constructors and methods in abstract_base_class.py|
> | tests_helpers.py | tests for constructors and methods in helper_functions.py|
> | tests_imp.py | tests for constructors and methods in important_classes.py|
> | tests_alt.py | tests for constructors and methods in alternative_classes.py|
> | API.md | jupyterbook file to generate api documentation |
> | _config.yml | jupyterbook config for documentation |
> | _toc.yml | jupyter book toc file for documentation |
> | philosophy.md | overview of how the code is organized for docs |
> | example.md | myst notebook example of using the code |
> | scratch.ipynb | jupyter notebook from dev |

and compare to the working directory

cat README.md

# GitHub practice

test
today is rainy
|file | contents |
> | --| -- |
> | abstract_base_class.py | core abstract classes for the project |
> | helper_functions.py | utitly funtions that are called by many classes |
> | important_classes.py | classes that inherit from the abc |
> | alternative_classes.py | classes that inherit from the abc |
> | LICENSE.md | the info on how the code can be reused|
> | CONTRIBUTING.md | instructions for how people can contribute to the project|
> | setup.py | file with function with instructions for pip |
> | test_abc.py | tests for constructors and methods in abstract_base_class.py|
> | tests_helpers.py | tests for constructors and methods in helper_functions.py|
> | tests_imp.py | tests for constructors and methods in important_classes.py|
> | tests_alt.py | tests for constructors and methods in alternative_classes.py|
> | API.md | jupyterbook file to generate api documentation |
> | _config.yml | jupyterbook config for documentation |
> | _toc.yml | jupyter book toc file for documentation |
> | philosophy.md | overview of how the code is organized for docs |
> | example.md | myst notebook example of using the code |
> | scratch.ipynb | jupyter notebook from dev |

Other variables¶

ls .git

COMMIT_EDITMSG	HEAD		logs		REBASE_HEAD
config		hooks		objects		refs
description	index		ORIG_HEAD
FETCH_HEAD	info		packed-refs

ORIG_HEAD is the pointer to where your local git repo knows last the head of the origin remote was (here, GitHub)

cat .git/ORIG_HEAD

634c2175bf0b39883b5e8dcc1fae0d2b45c770b3

Git Objects¶

There are 3^[1] types:

• blob objects: the content of your files (data)

• tree objects: stores file names and groups files together (organization)

• Commit Objects: stores information about the sha values of the snapshots

Some variables are only created when you need them or use them

For example if we compare the gh-inclass

ls .git

COMMIT_EDITMSG	HEAD		logs		REBASE_HEAD
config		hooks		objects		refs
description	index		ORIG_HEAD
FETCH_HEAD	info		packed-refs

to my kwl

cd ../fall25-kwl-brownsarahm/

ls .git

config		HEAD		info		packed-refs
description	hooks		logs		refs
FETCH_HEAD	index		objects

we see some are not there

the COMMIT_EDITMSG was created when we ran git commit without the -m option

cat .git/COMMIT_EDITMSG

begin reorg

Commits are Immutable¶

A commit is created by:

1. making blobs for every file (including in folders) in the staging area

2. making trees for every folder

3. formatting the commit file content (parent commit hash, tree hash, author, time, message)

4. hashing that content

5. writing the content to a file named with the hash value

therefore, if we change anything about the content, it gets a new hash, and makes a new commit. In other words,a commit is an Immutable object

This means that git is secure in the sense that no malicious actor could infect a repo.

If the content of a fil for a git object (blob, tree, or commit) does not hash to the name of the file, we can tell that it is tampered with.

see more on the data assurance

Prepare for Next Class¶

1. If on windows, you may need to reinstall gitbash or follow other steps from the gh docs mintty page for the following steps to work locally

2. install jupyterbook this is not the same as jupyter lab or jupyter notebook that 310 uses

3. Make sure that the gh CLI tool works by using it to create an issue called test on your kwl repo with gh issue create. If on Windows try reinstalling with mintty

4. Post an example of documentation for libraries, frameworks, or developer tools that you have used and make a post on the class discussion board. Refresh your memory of the one you post and skim through two other examples.

Badges¶

## Workflow Reflection

1. Why is it important that git can be used with different workflows?
1. Which workflow do you think you would like to work with best and why?
1. Describe a scenario that might make it better for the whole team to use a workflow other than the one you prefer.

Experience Report Evidence¶

Append the contents of one of your trees or commits and one blob or tree inside of that first one to the bottom of your experience report.

That is, paste the result of you tracing through your own repo.

Questions After Today’s Class¶

How will we apply this information to the course?¶

Today we saw an example of how abstractions can work (or not quite work, since git is a leaky abstraction).

Seeing how git works as a file system also starts to build up your knowledge of what kinds of operations any file system needs to implement

Is there a benefit to working with git at a lower level?¶

It is mostly helpful for understanding how git works so that you can understand how the more advanced features work, which can save you a lot of time.

We studied it primarily to see how a file system works.

It could, however, be useful if you were building a developer tool, or you wanted to contribute to git itself see gitgitgadget for how

Is it possible to check the oldest commit using cat .git/HEAD¶

You coudl trace backwards, like parsing through a linked list:

• first cat .git/HEAD

• then cat the file that tells you about

• then use git cat-file -p on the hash from the file above

• then use git cat-file -p hash of the parent commit

• repeat above until there is no parent commit.

Can we configure Git to use a stronger hashing algorithm?¶

It looks like you can actually, from the transition plan’s detailed design that they have implemented it. However, it appears github does not support that, but gitlab does at least partially

If we are seeing a command for the first time, how do we know if it is porcelain or plumbing?¶

You can use the definitions and what the command does.
